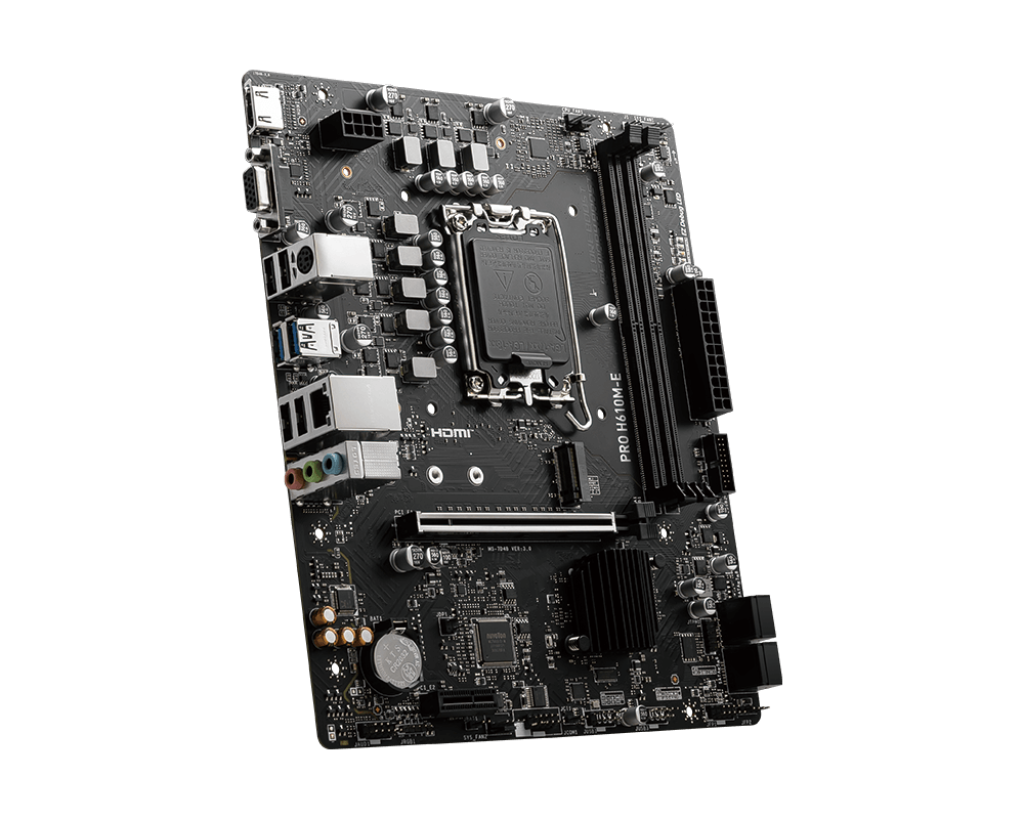

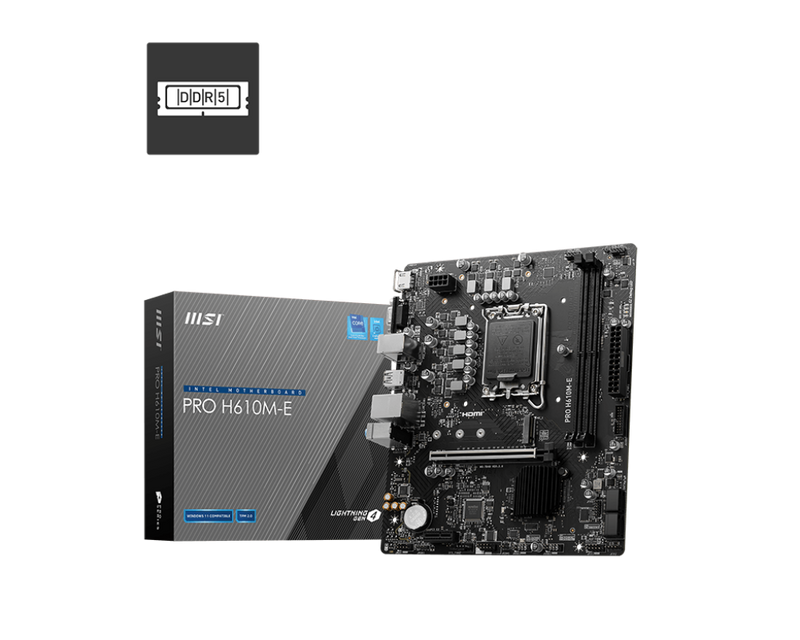

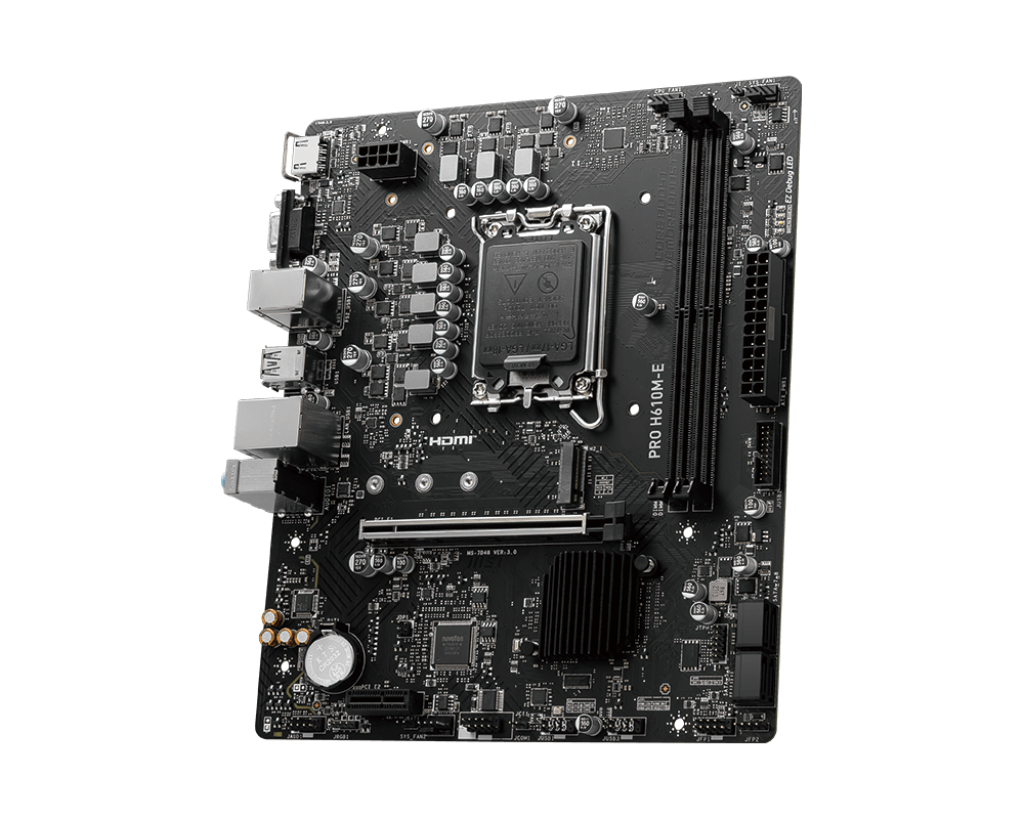

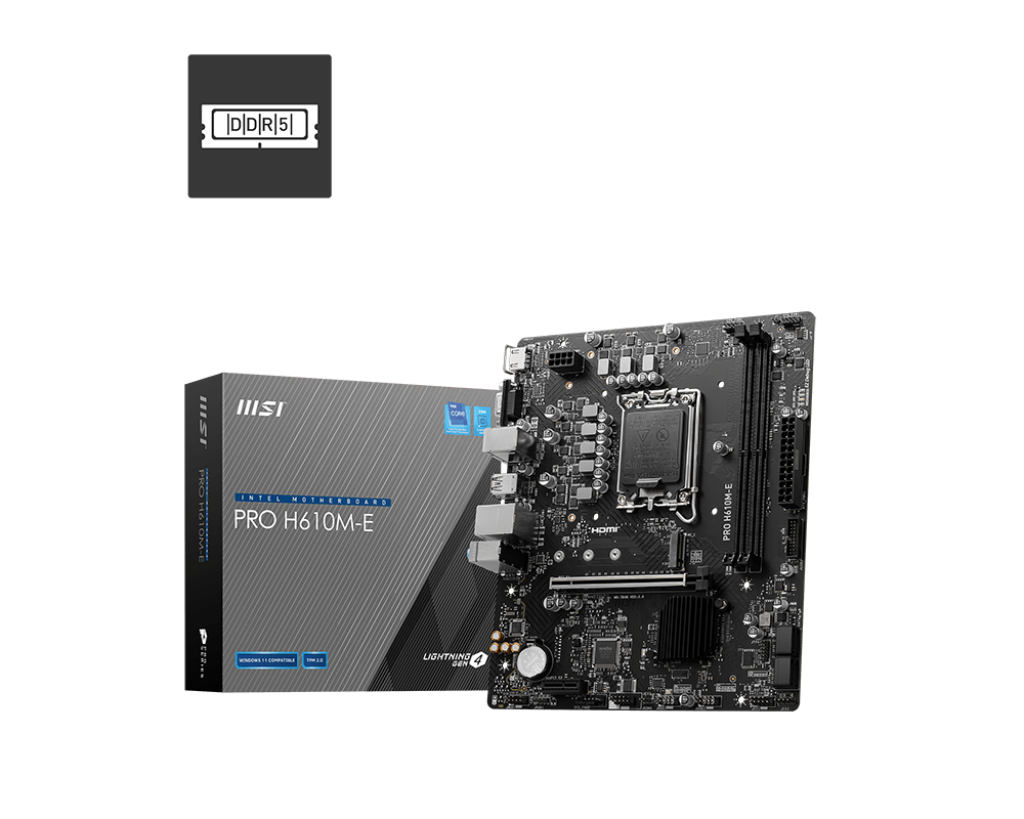

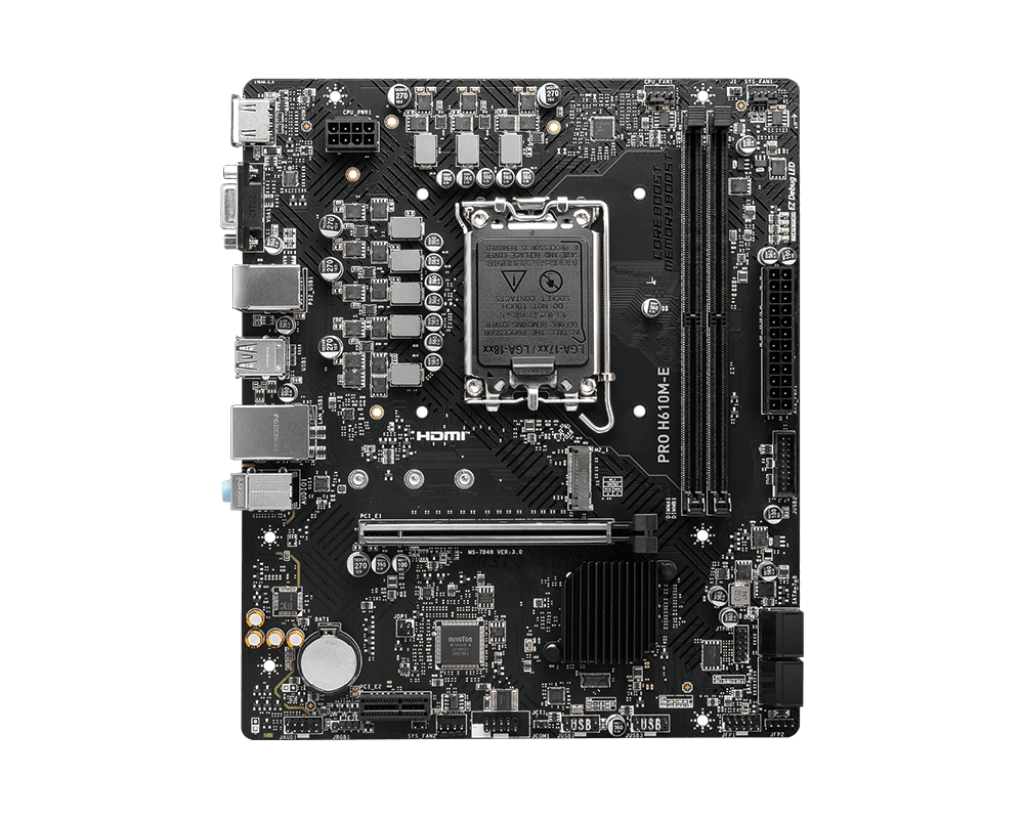

PRO H610M-E DDR5
HK$59900
單價
/
不可用
Free Package
- 支援 LGA 1700 腳位的第 14 代 / 第 13 代 / 第 12 代 Intel® Core™, Pentium® Gold 和 Celeron® 處理器
- 支援 DDR5 記憶體，高達 5600(MAX) MHz
- Core Boost : 搭配優異配置和數位電源設計，充分支援更多核心，提供更高效能表現。
- Memory Boost: 先進技術提供乾淨訊號傳輸，實現最佳性能和穩定度
- 閃電般的快速遊戲體驗 : PCIe 4.0
- Audio Boost: 讓您的耳朵沉浸在錄音室等級的音效品質。
- 鋼鐵裝甲 : 保護 VGA 避免彎曲和 EMI 干擾，以獲得更好的性能、穩定性和使用壽命。
PRO H610M-E
| Chipset |
INTEL H610 |
|---|---|
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory |
2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics |
1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage |
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| USB |
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN |
Realtek® RTL8111H Gigabit LAN |
| Internal IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE |
4x EZ Debug LED |

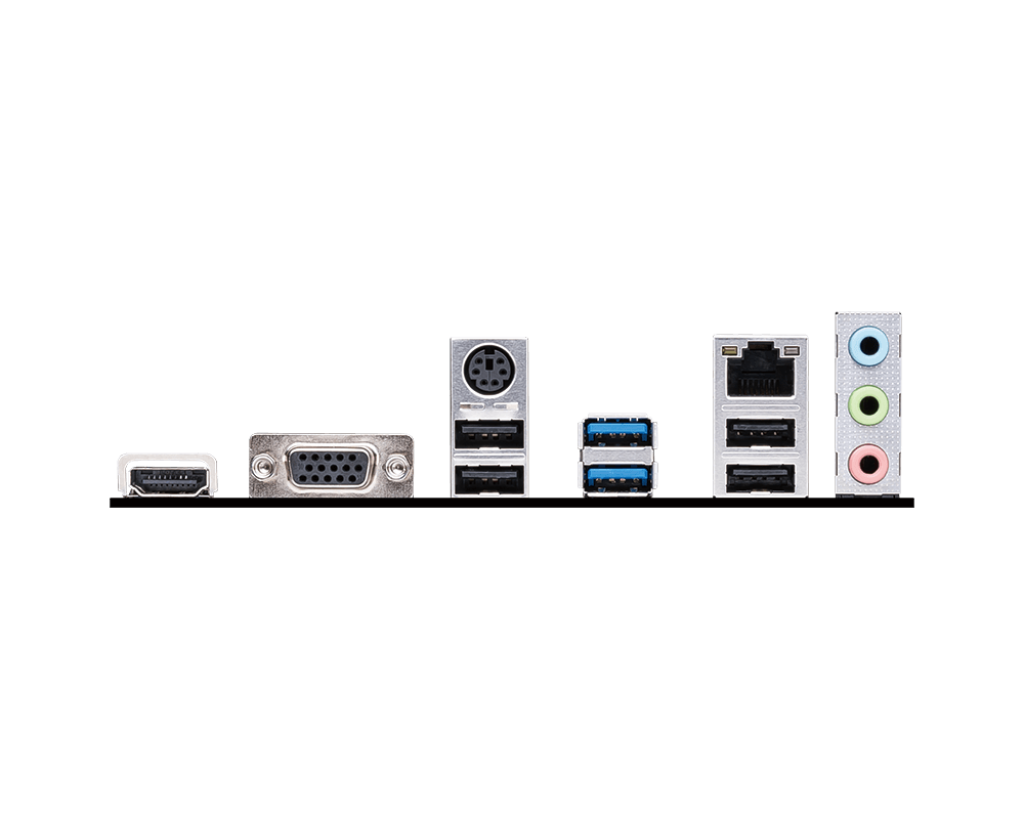

| BACK PANEL PORTS |
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| BOX CONTENT |
 |
| PCB Info |
mATX 200mmx236.16mm |
