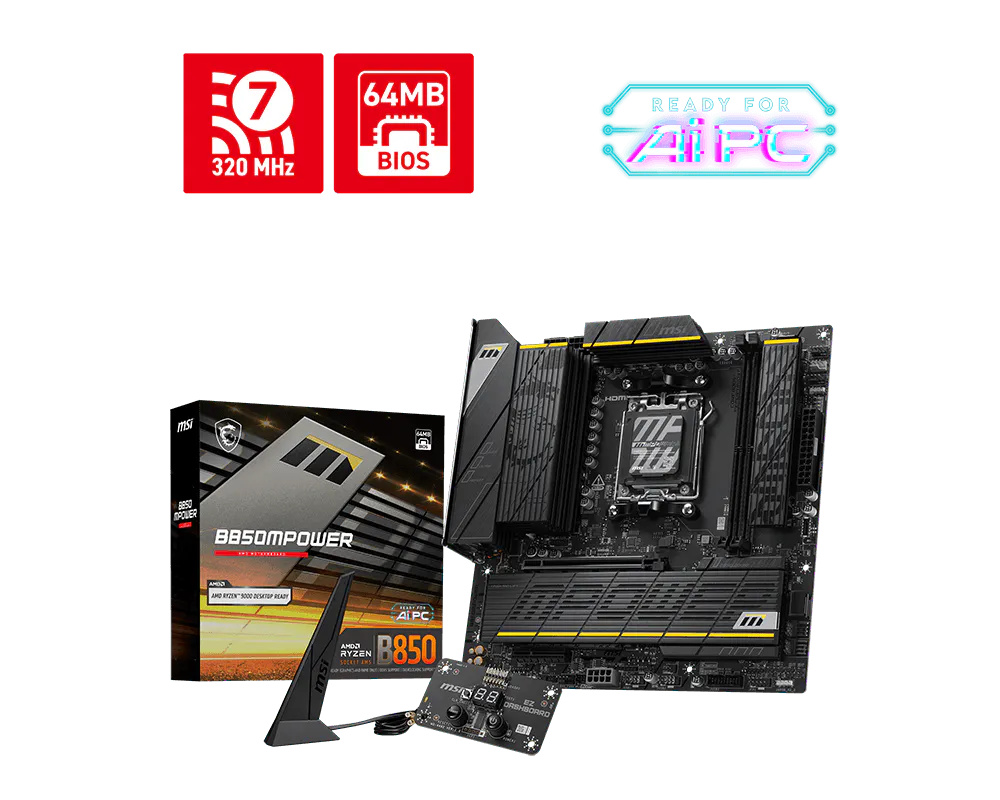

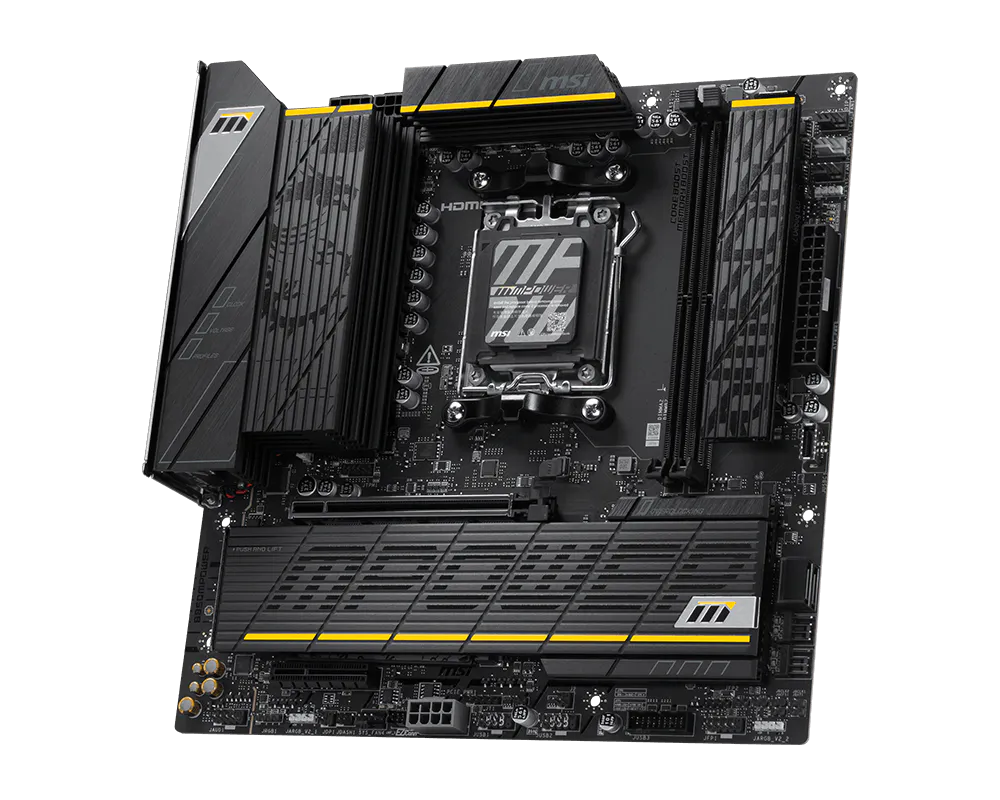

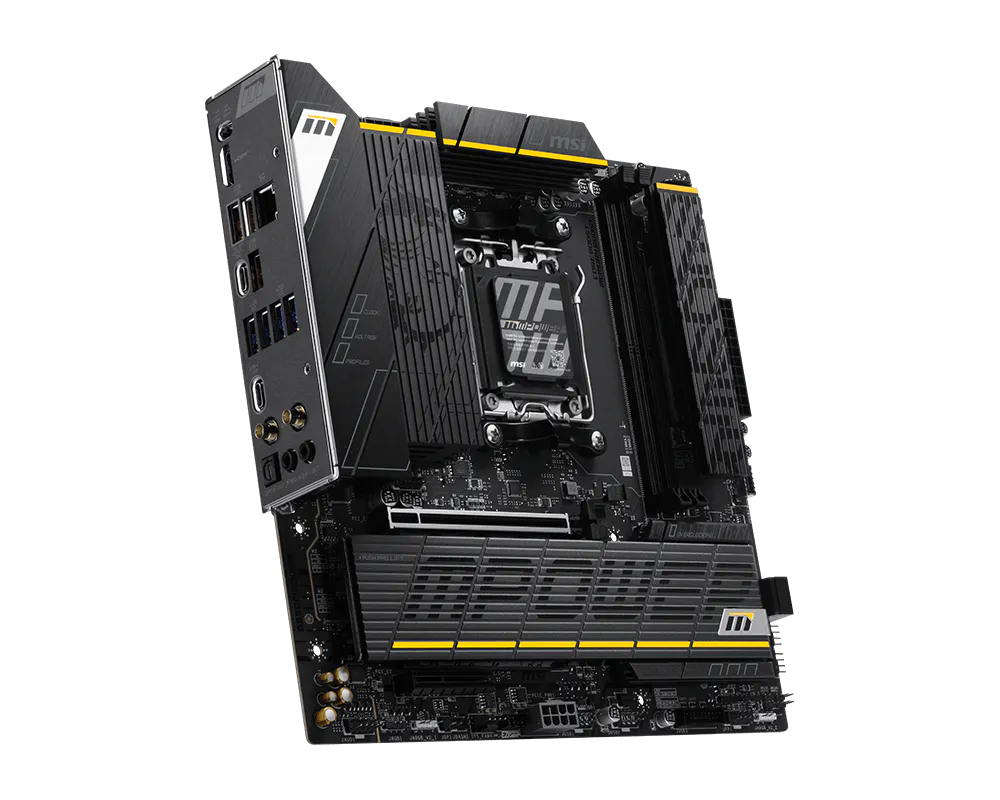

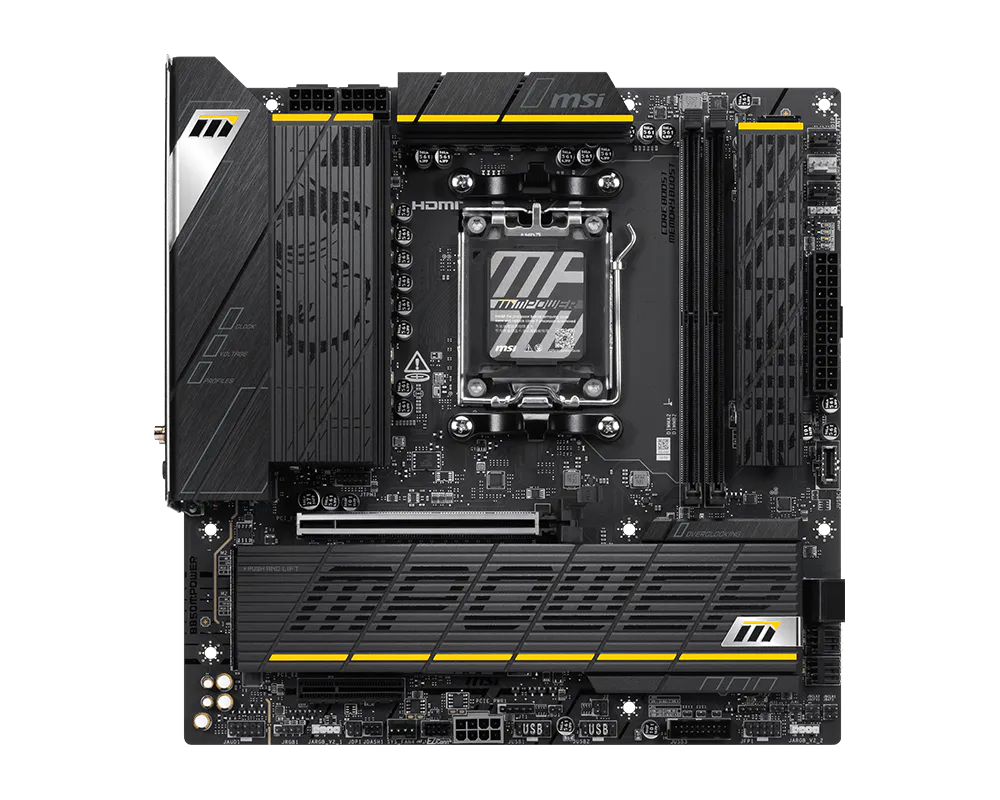

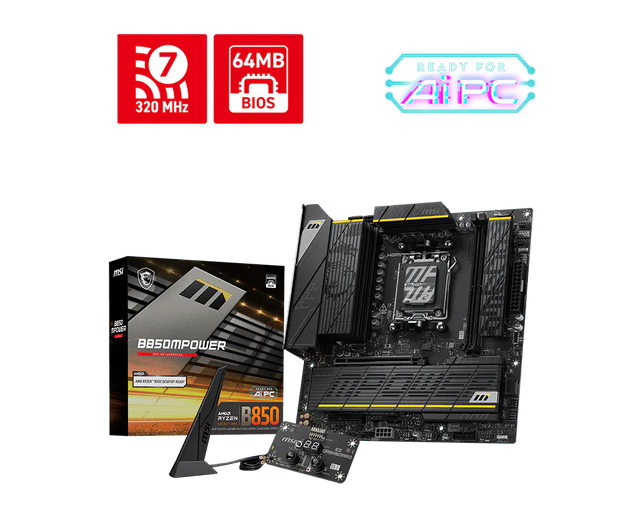

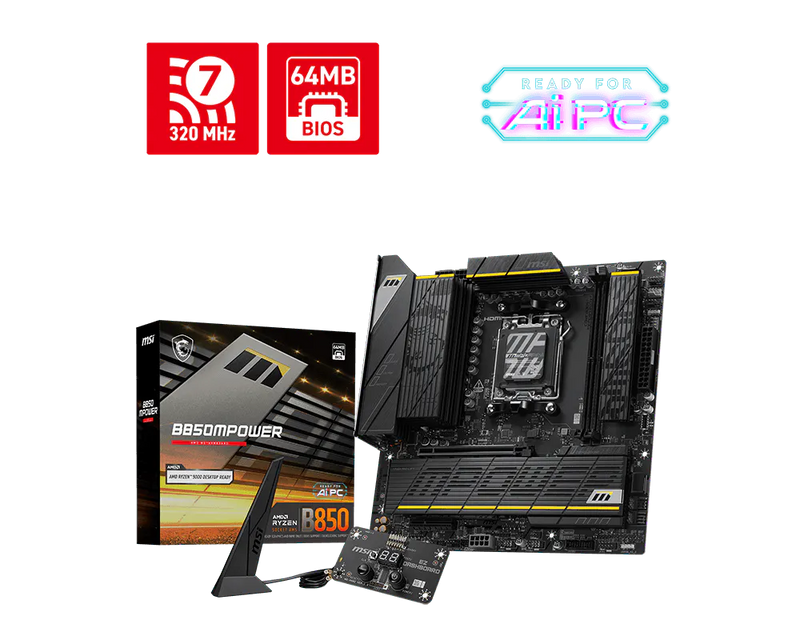

B850MPOWER

HK$1,99900

Dispatch Period

Packages are generally dispatched within 3 - 5 days after receipt of payment, while stock available.

優惠組合

Free Package

  • 支援 AMD Ryzen™ 9000 / 8000 / 7000 系列桌上型處理器
  • 支援 DDR5 記憶體，雙通道 DDR5 10200+ MT/s (OC)
  • 超性能 : OC Engine, 12+2+1 Duet Rail 電源系統並採用雙 8-pin CPU 電源連接埠、Core Boost、Memory Boost，採用 2oz 厚度銅的8層伺服器等級 PCB。
  • 散熱護甲 : 延伸加大散熱片、附加 7W/mK 的 MOSFET 散熱墊、附加 choke 電感散熱墊熱墊以及 M.2 Shield Frozr II，專為高效能系統和持久的使用體驗而設計。
  • EZ DIY : EZ M.2 Shield Frozr II、EZ M.2 Clip II、EZ PCIe Clip II 和 EZ 天線
  • 5G LAN 與 Wi-Fi 7 解決方案 - 專業和多媒體用途的最新解決方案，提供安全、穩定、高速的網路和資料傳輸
  • 閃電極速遊戲體驗 : PCIe 5.0 插槽、Lightning Gen 5 x4 M.2、20G USB Type-C
  • Audio Boost 5 : 為你的耳朵帶來錄音室等級的音效品質，提供最沉浸的遊戲體驗。


詳細資訊 : https://www.msi.com/Motherboard/B850MPOWER

B850MPOWER

Chipset AMD B850
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 10200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 8400+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
** The DIMM slots on this motherboard only have single-sided latches.
*** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
2x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

* Please refer to the manual for M.2 SSD heatsink restrictions
RAID • Supports RAID 0 and RAID 1 for SATA storage devices
• Supports RAID 0, RAID 1 RAID 5* and RAID 10 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN Realtek® 8126-VB 5Gbps LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x Direct OC Jumper (JBCLK)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED
1x EZ Memory Detection LED

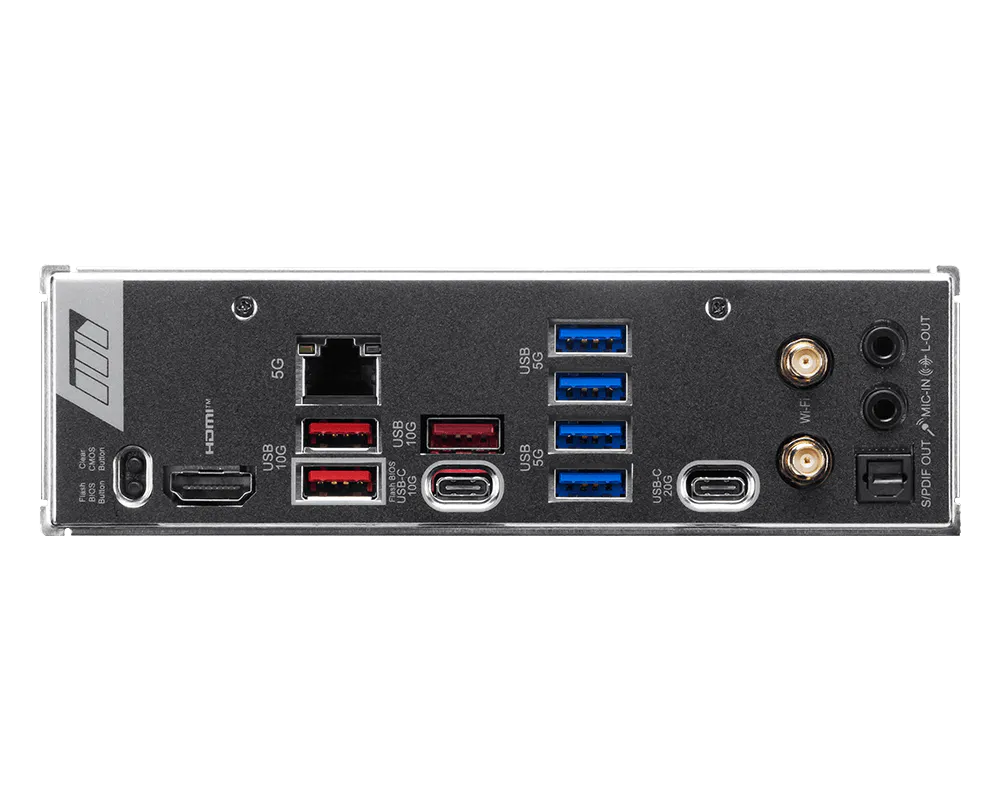

BACK PANEL PORTS
  1. Clear CMOS Button
  2. HDMI™
  3. 5G LAN
  4. USB 10Gbps Type-A
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. Flash BIOS Button
  8. USB 10Gbps Type-A
  9. USB 10Gbps Type-C
  10. USB 5Gbps Type-A
  11. USB 20Gbps Type-C
  12. Optical S/PDIF Out
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info mATX
243.84mmx243.84mm
