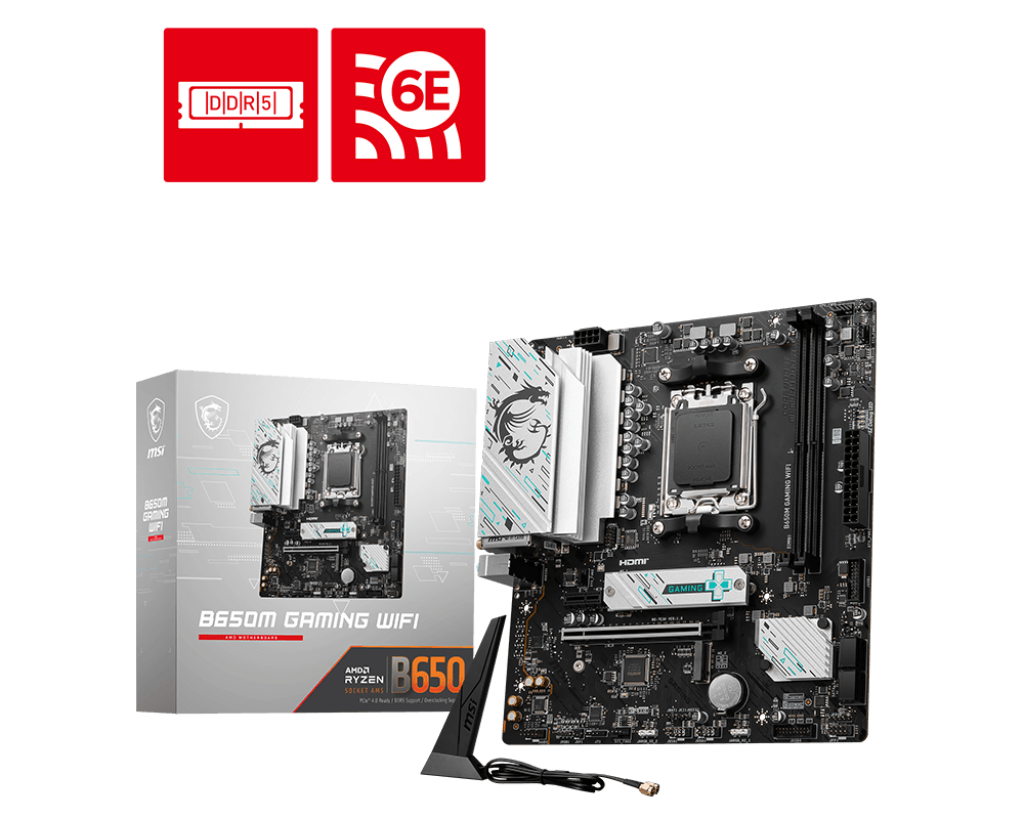

B650M GAMING WIFI
HK$94900
單價
/
不可用
Free Package
- 支援 AMD Ryzen™ 9000 / 8000 / 7000 桌上型處理器。
- 支援 DDR5 記憶體，高達 7800+(OC) MHz
- Core Boost : 搭配優異配置和數位電源設計，充分支援更多核心，提供更高效能表現
- Memory Boost : 先進技術提供乾淨訊號傳輸，實現最佳性能和穩定度。
- 閃電極速遊戲體驗：PCIe 4.0 插槽、Lightning Gen4 M.2
- 鋼鐵裝甲 : 保護 VGA 避免彎曲和 EMI 干擾，以獲得更好的性能、穩定性和使用壽命。
- AUDIO BOOST : 讓您的耳朵沉浸在錄音室等級的音效品質。
- 高品質 PCB : 6 層 PCB 加入 2oz 厚度銅

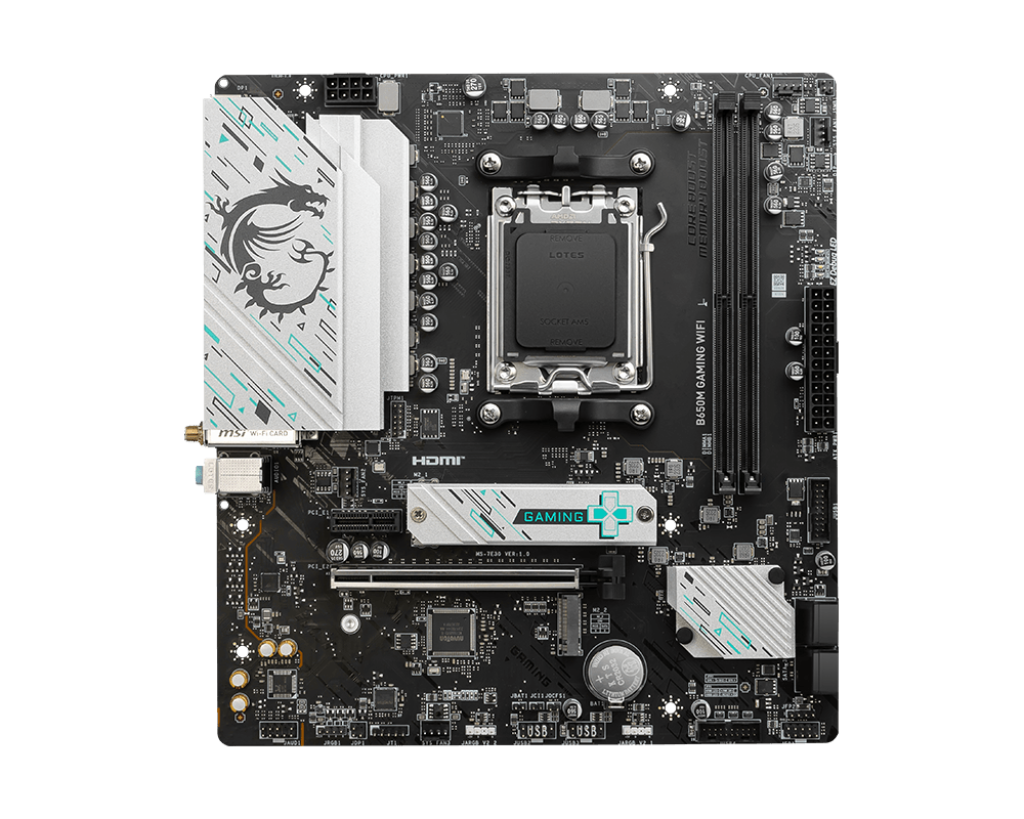

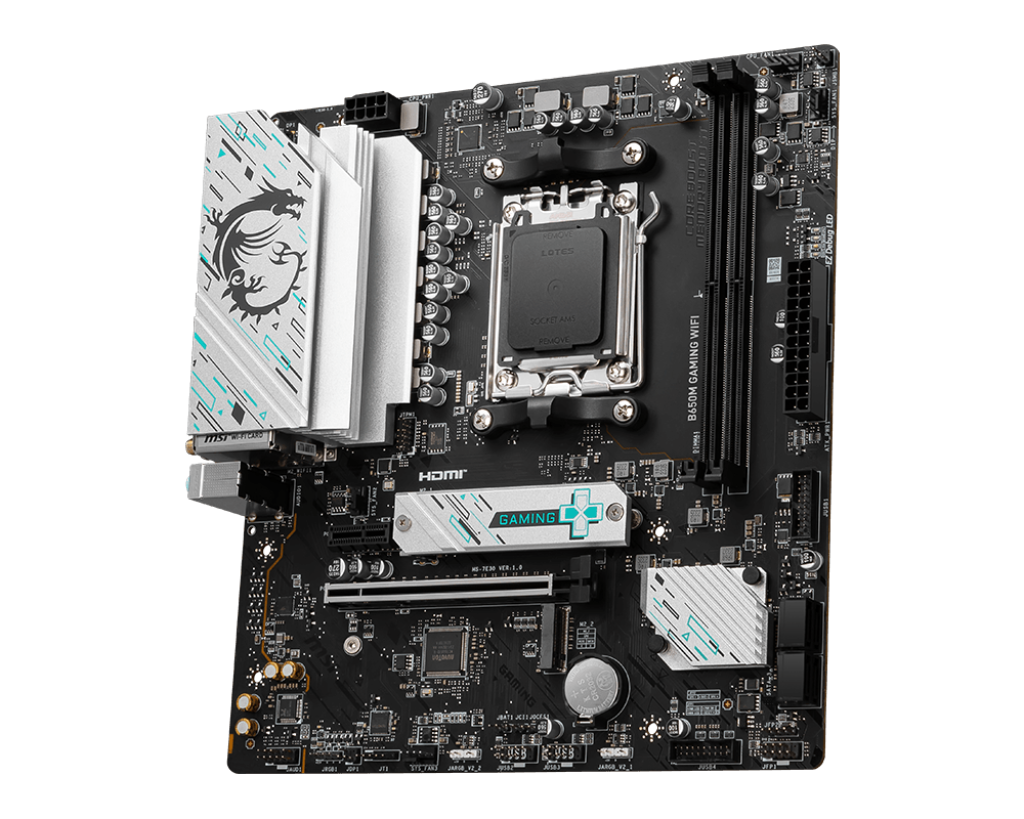

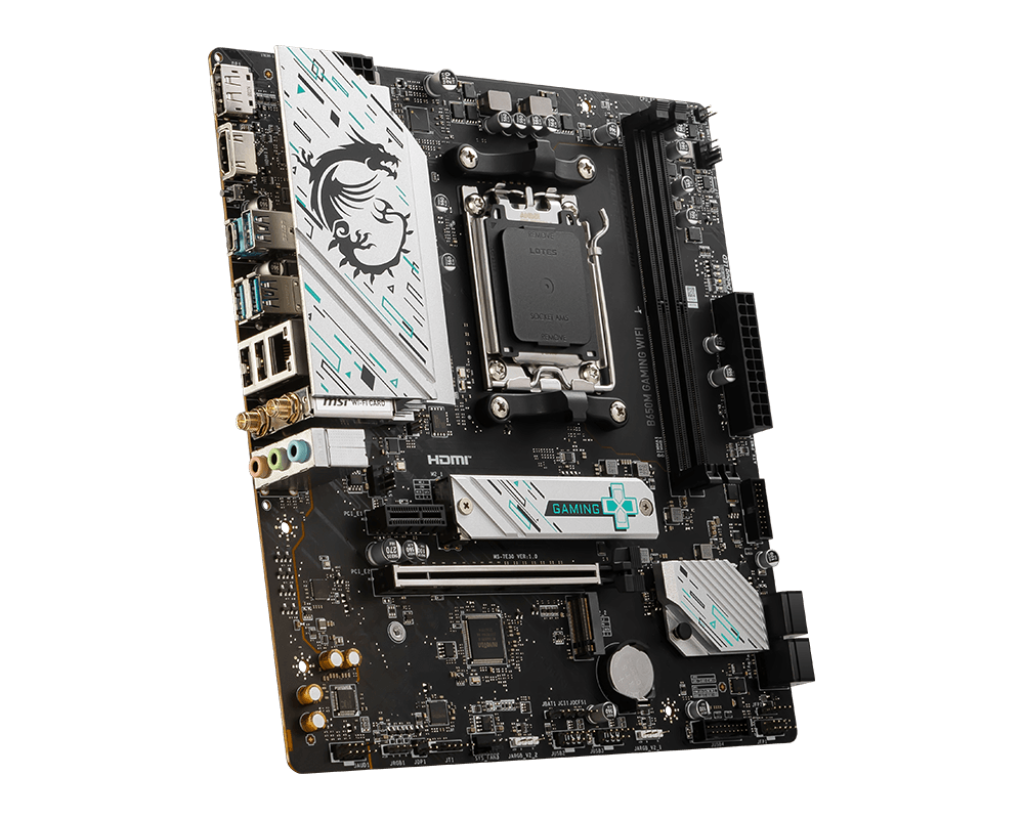

B650M GAMING WIFI
| Chipset |
AMD B650 |
|---|---|
| CPU |
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory |
2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
| Onboard Graphics |
1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |
1x PCI-E x16 slot Supports x16/x1 • Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage |
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G •The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor |
| RAID |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) |
| LAN |
Realtek® RTL8125BG 2.5Gbps LAN |
| Internal IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports |
| WIRELESS LAN & BLUETOOTH |
Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED FEATURE |
4x EZ Debug LED |

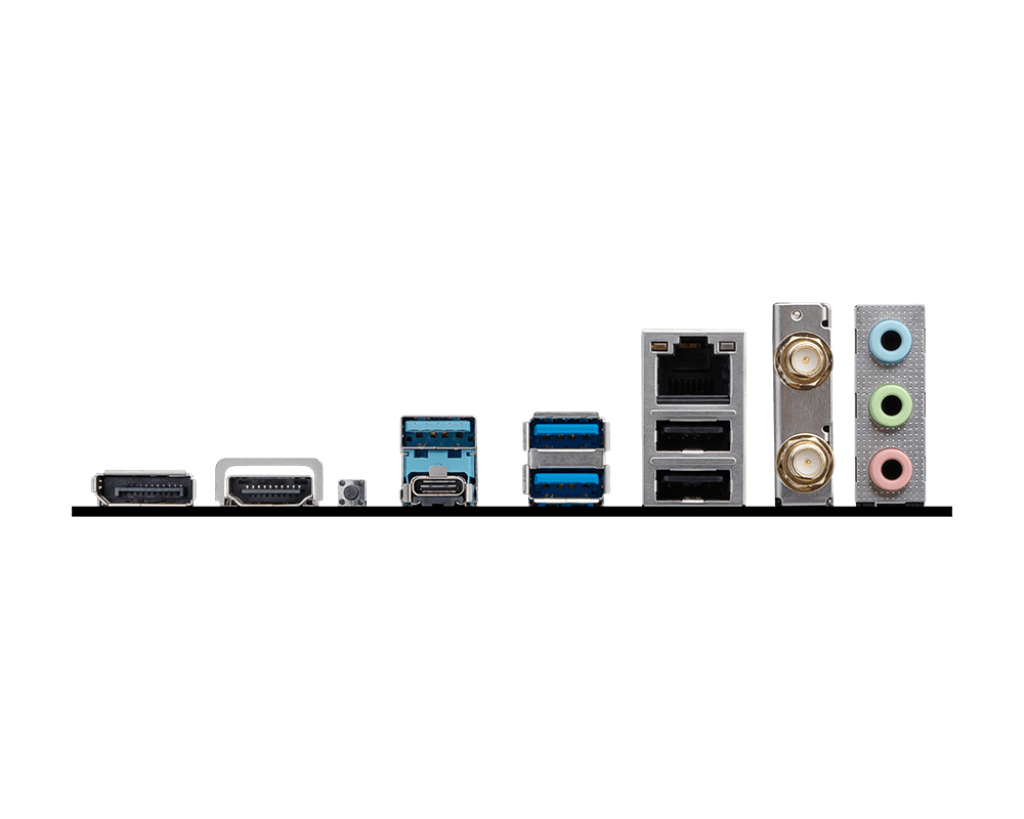

| BACK PANEL PORTS |
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| BOX CONTENT |
 |
| PCB Info |
mATX 226mmx243.84mm |
