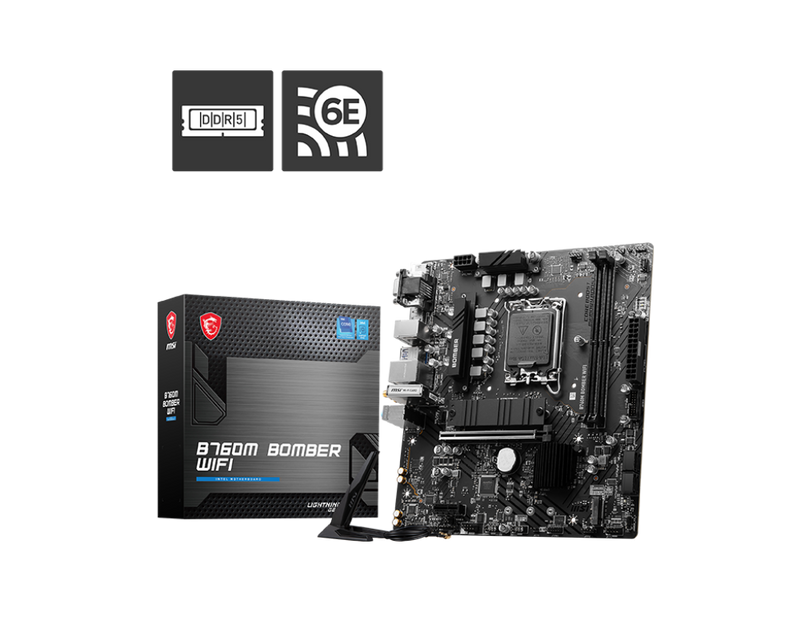

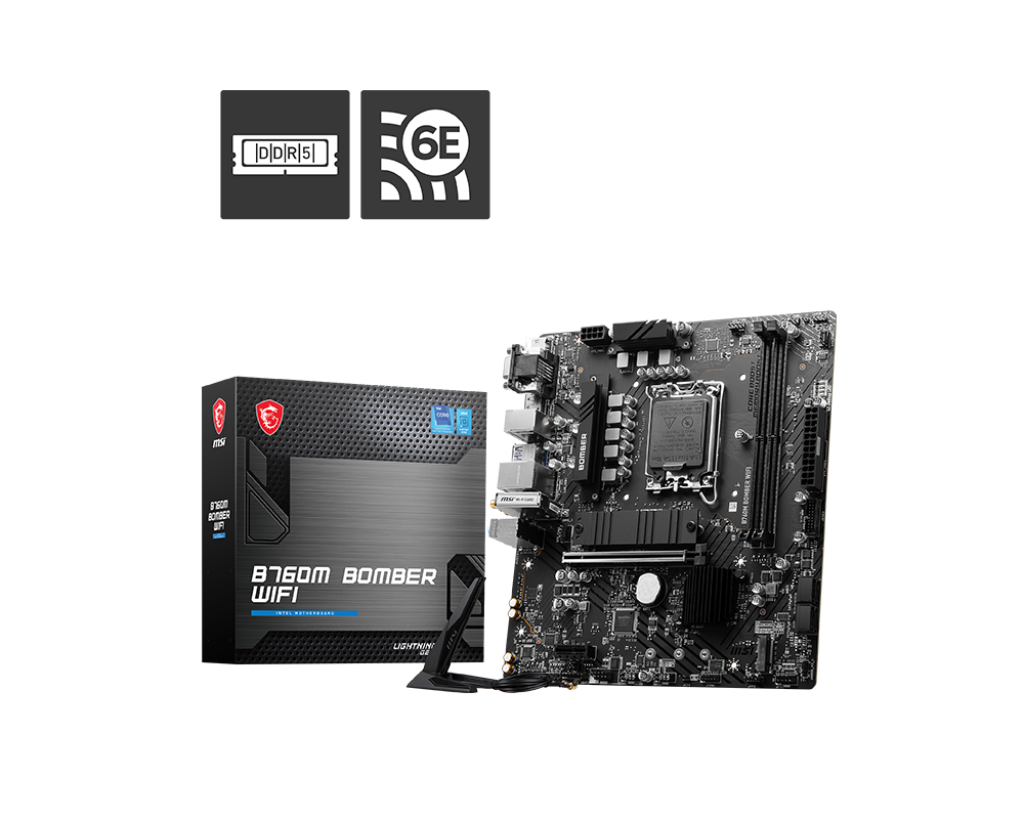

B760M BOMBER WIFI
HK$69900
Unit price
/
Unavailable
Free Package
- 支援 LGA 1700 腳位的第 12 代 / 第 13 代 / 第 14 代 Intel® Core™, Pentium® Gold and Celeron® 處理器
- 支援 DDR5 記憶體，雙通道 DDR5-6400+MHz (OC)
- Core Boost : 搭配優異配置和數位電源設計，充分支援更多核心，提供更高效能表現。
- Memory Boost : 全新技術提供純淨信號傳遞，實現最佳性能、穩定性和兼容性。
- 閃電極速遊戲體驗 : PCIe 4.0 插槽、搭載 M.2 Shield Frozr 的 Lightning Gen 4 x4 M.2
- 2.5G LAN 搭載 Wi-Fi 6E : 適用專業與多媒體網路解決方案。提供安全、穩定與快速地連線品質。
- AUDIO BOOST : 讓您的耳朵沉浸在錄音室等級的音效品質。
- 鋼鐵裝甲 : 保護 VGA 避免彎曲和 EMI 干擾，以獲得更好的性能、穩定性和使用壽命。
More Details : https://tw.msi.com/Motherboard/B760M-BOMBER-WIFI

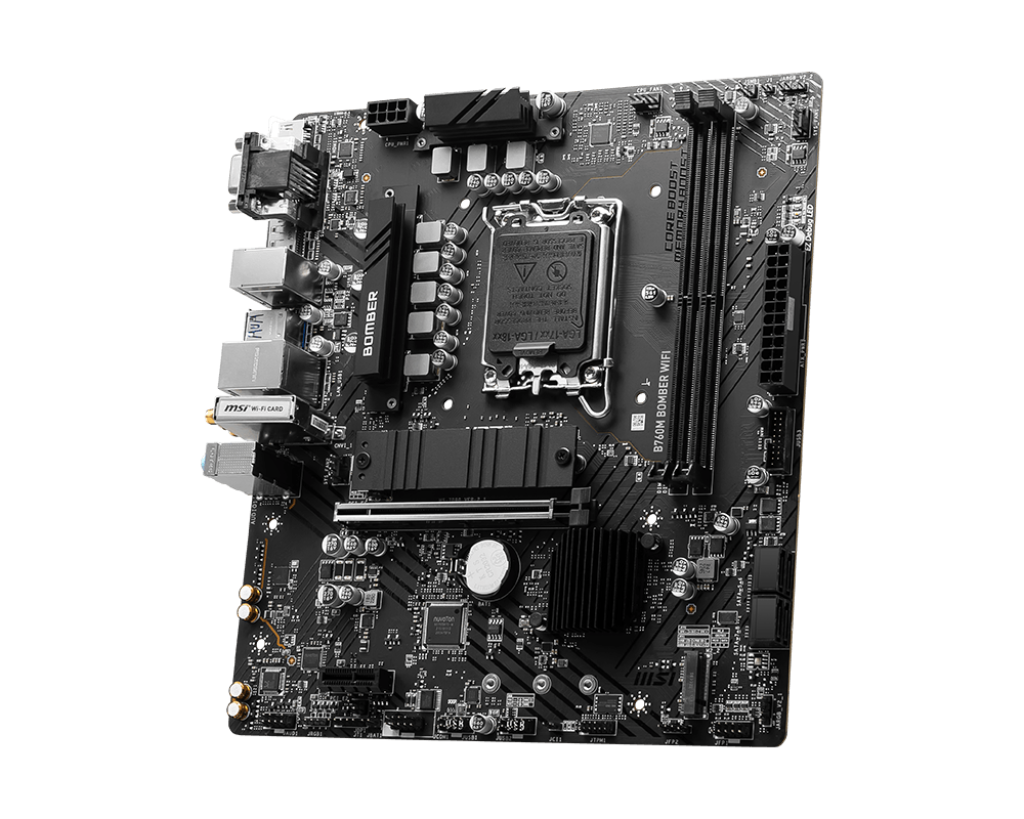

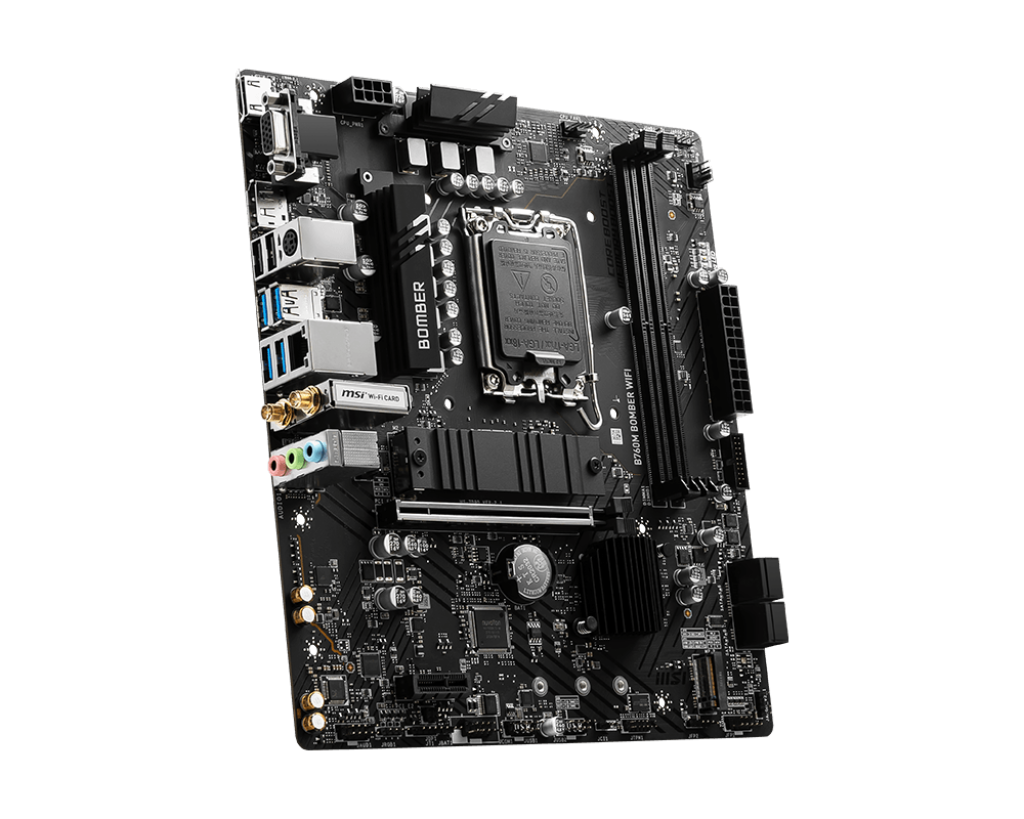

B760M BOMBER WIFI
| Chipset |
INTEL B760 |
|---|---|
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory |
2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics |
1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |
1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage |
2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN |
Realtek® RTL8125B 2.5Gbps LAN |
| Internal IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| WIRELESS LAN & BLUETOOTH |
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED FEATURE |
4x EZ Debug LED |

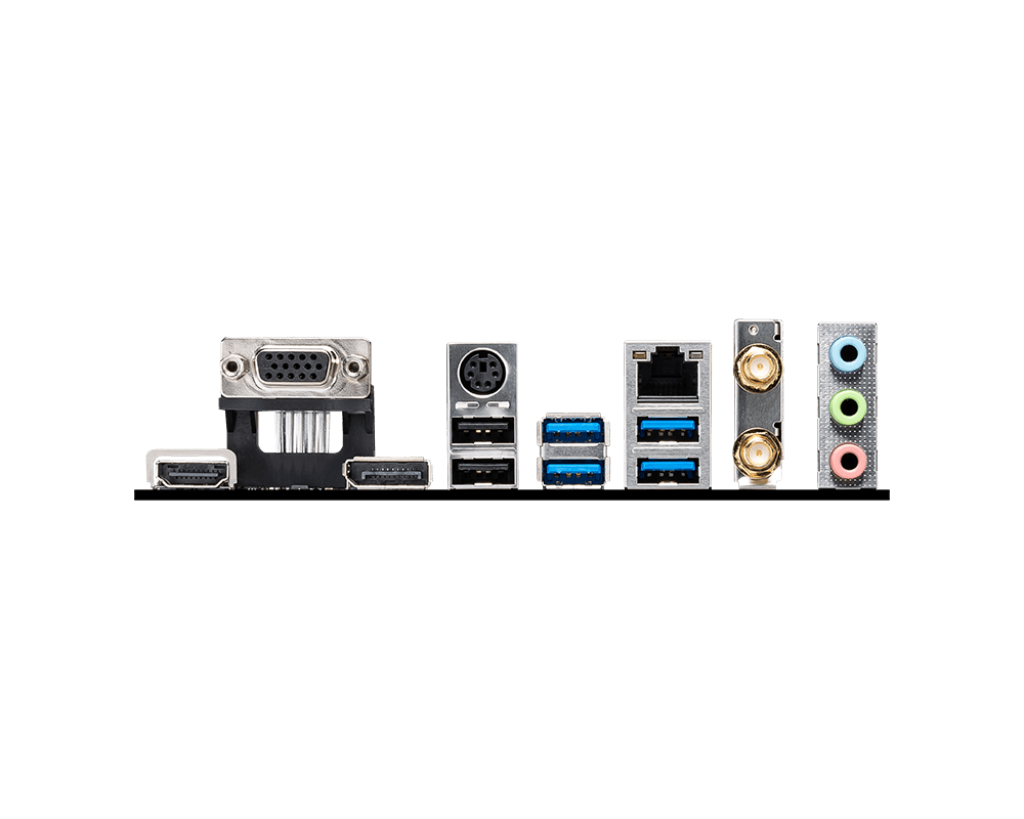

| BACK PANEL PORTS |
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| BOX CONTENT |
 |

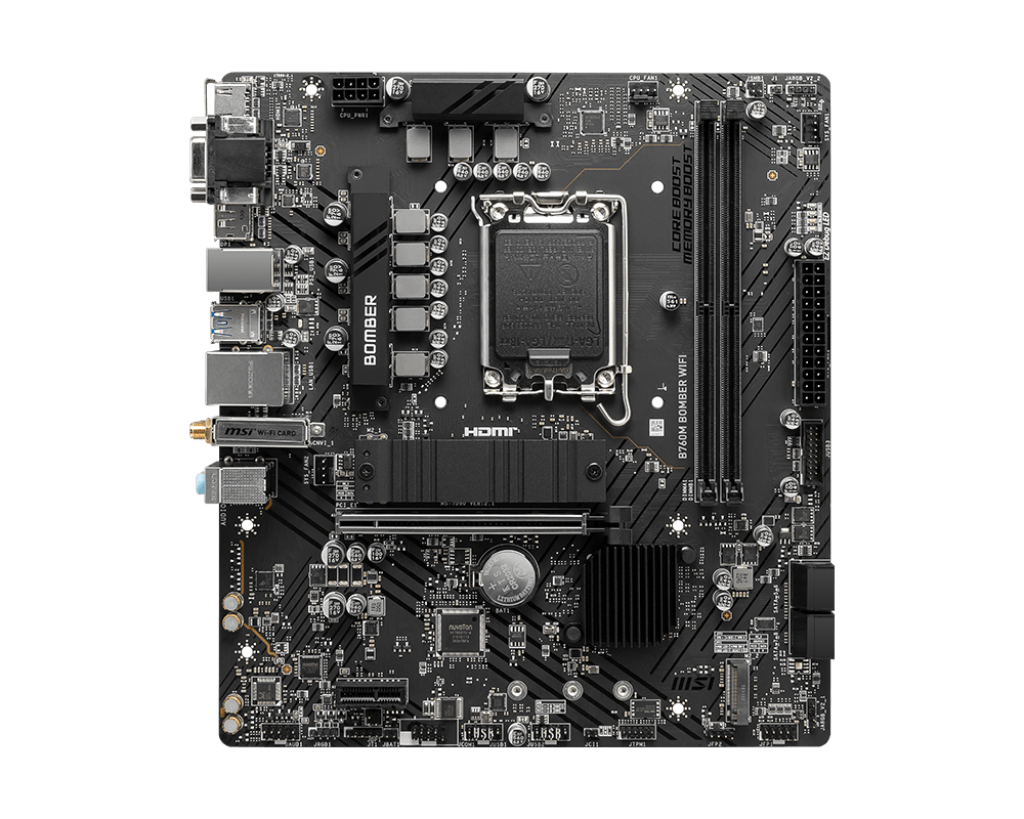

| PCB Info |
mATX 220mmx243.84mm |
